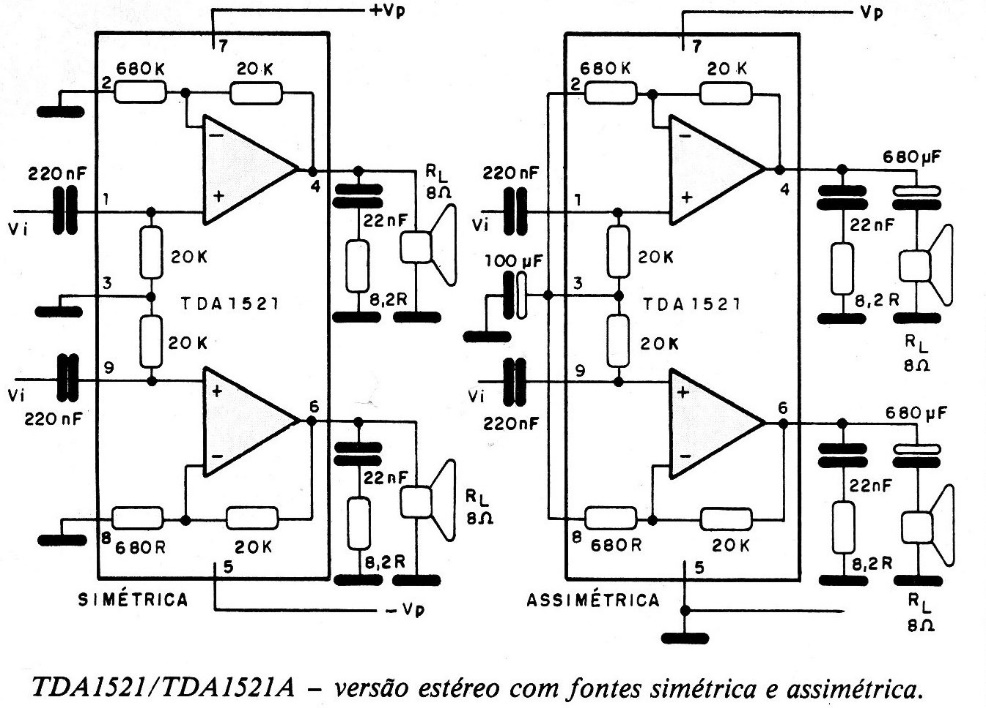

This integrated is indicated for sound systems of stereo televisions and stereo radios. Its pinout is compatible with the TDA1521A and can work with both symmetrical and asymmetrical power at voltages between 7.5 V and 20 V. It is manufactured in a 9-pin SIL enclosure. We have the following highlights for this integrated:
- Few external components are needed.
- Input muting during the on and off operations to prevent clicks. This feature facilitates remote control operation.
- Complies with IEo268 and DIN 45500 specifications for high fidelity.
- Voltage gain set at 30 dB 16 V of power and 8 ohm load) for excellent balance between channels (less than 0.2 dB).
- Excellent ripple rejection (50 dB at 100 Hz).
- Separation between 70 dB channels (symmetrical source)
- Low offset voltage between output and ground (2O mV tip)
- Output protection against short circuit.
- Internal thermal protection.
