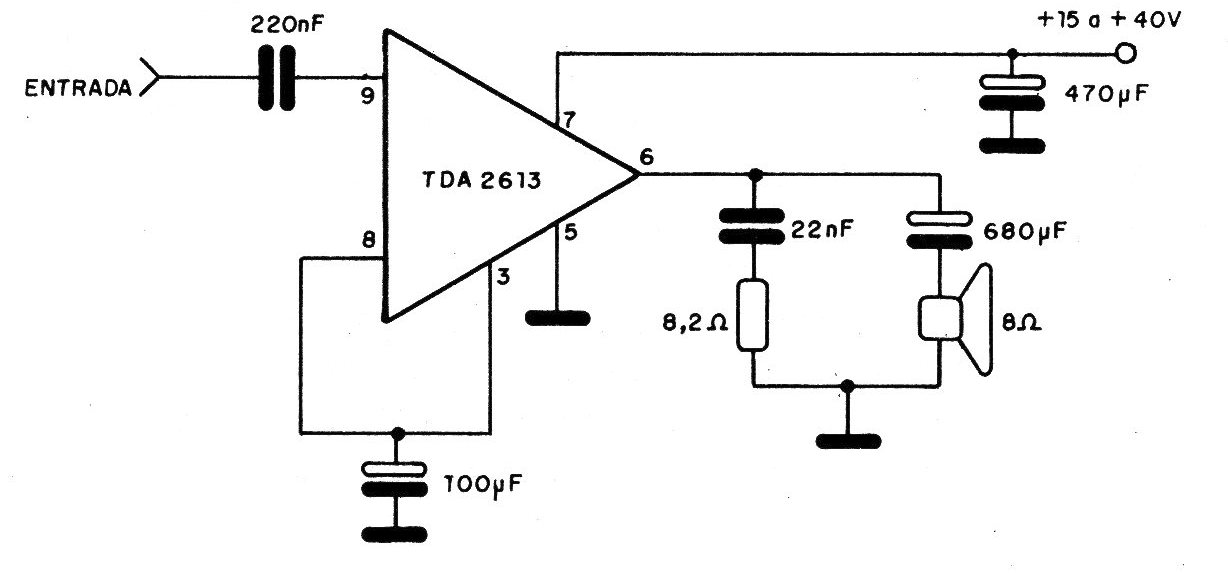

The amplifier presented is ideal for use in small monophonic sound systems, radios or televisions powered by the power grid, intercoms, etc. The TDA2613 integrated circuit is manufactured by Philips Components and must have a good heat radiator. This circuit does not require a symmetrical power supply and the voltage gain is high, which requires care with the shielding of the signal input cables.
