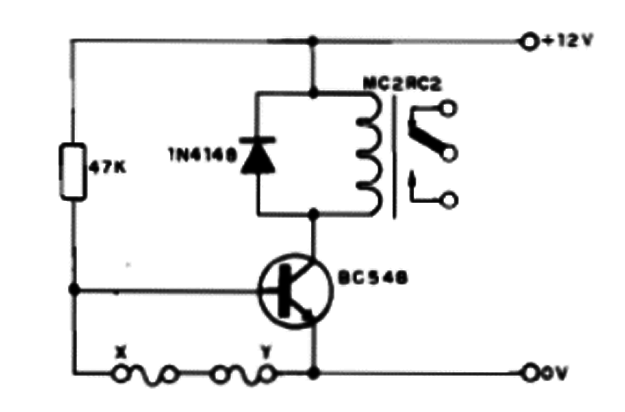

This one-transistor alarm can be used with much more sensors than the two shown by the figure. Poser supply must be 2 V at least higher than the relay coil voltage to compensate voltage fall in the SCR.
One Transistor Alarm (CB914E)
- Details
- Written by: Newton C. Braga
