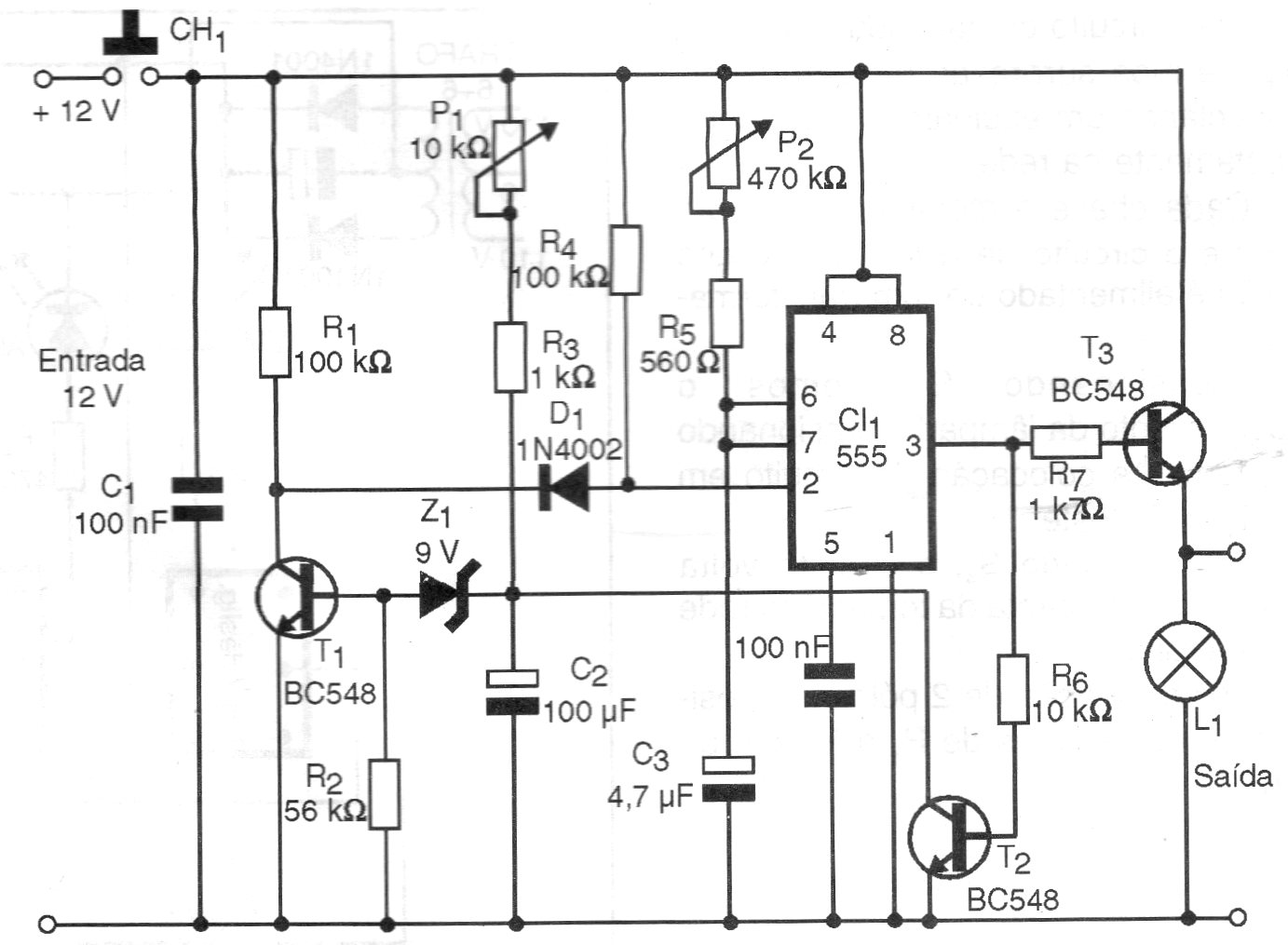

We found this circuit in a 1998 publication. The circuit has controls for both frequency and signal strength. A lamp is used to monitor the signals. The supply is made with a voltage of 12 V.
| Clique na imagem para ampliar |
Variable Output Oscillator (CB16513E)
- Details
- Written by: Newton C. Braga
