Ramp Generator (CB16917E)

Details
Written by: Newton C. Braga

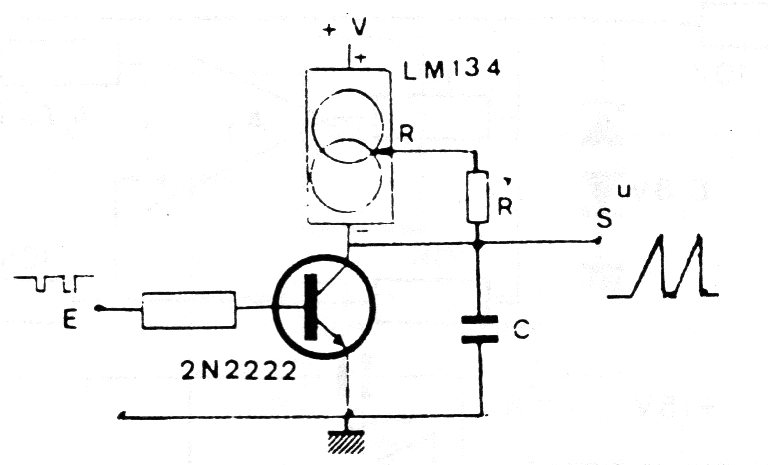

From an input signal, and using an unusual current source, this circuit generates a ramp, that is, a voltage that grows linearly up to a certain value, and then falls.




| Clique na imagem para ampliar |
