Appliance Test (CB16511E)

Details
Written by: Newton C. Braga

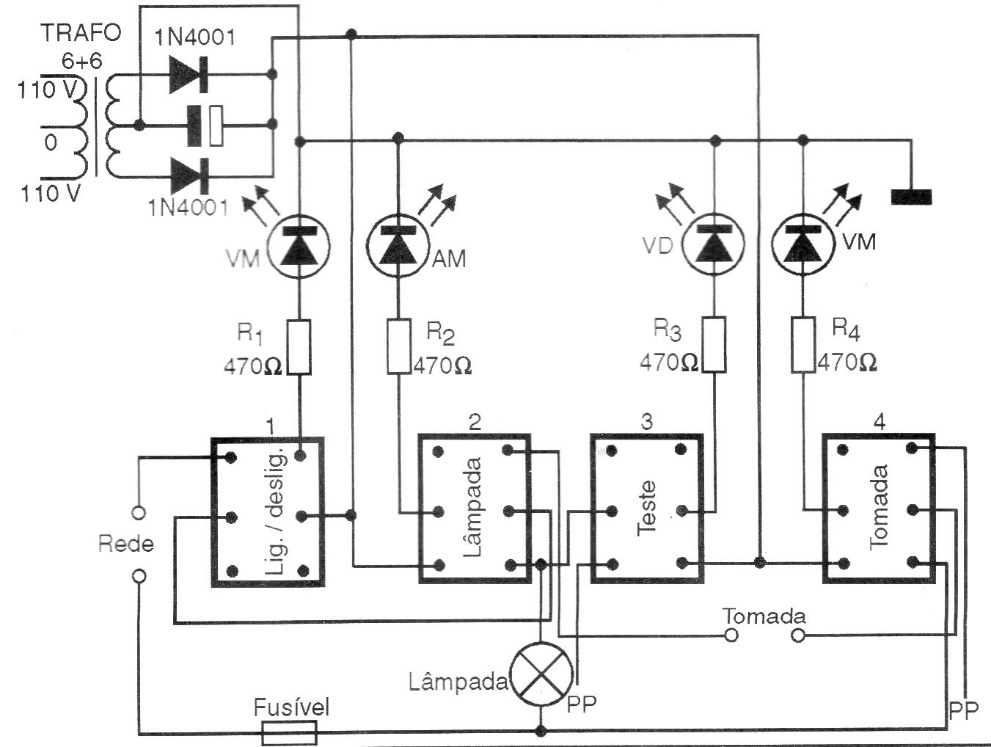

We found this circuit in a 1998 documentation. It tests common household appliances to see if they are shorted by lighting an incandescent lamp.
