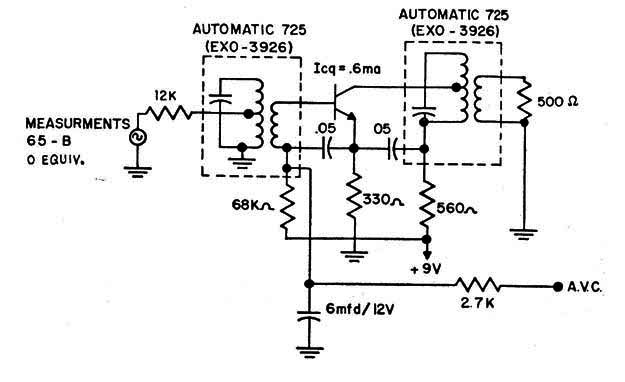

For reference only, this is the first IF amplifier stage of a common transistor radio from the 1950/1960’s. The intermediary frequency is 455 kHz, acording the IF transformers.
