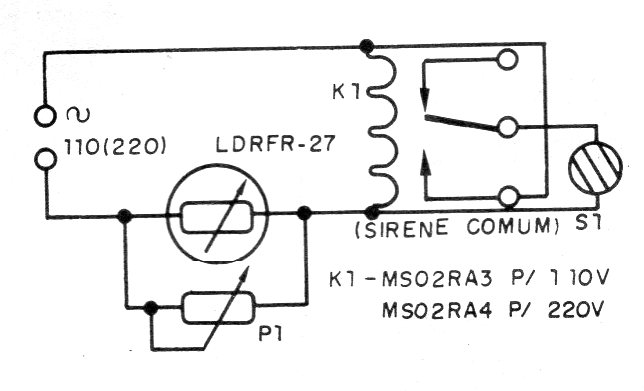

This circuit activates a relay when the sensor receives light indicating dawn. A relay with a 4k7 or 10k wire potentiometer is used for sensitivity adjustment. This potentiometer must be adjusted to the trigger threshold. The circuit makes use of a relay for the local network.
