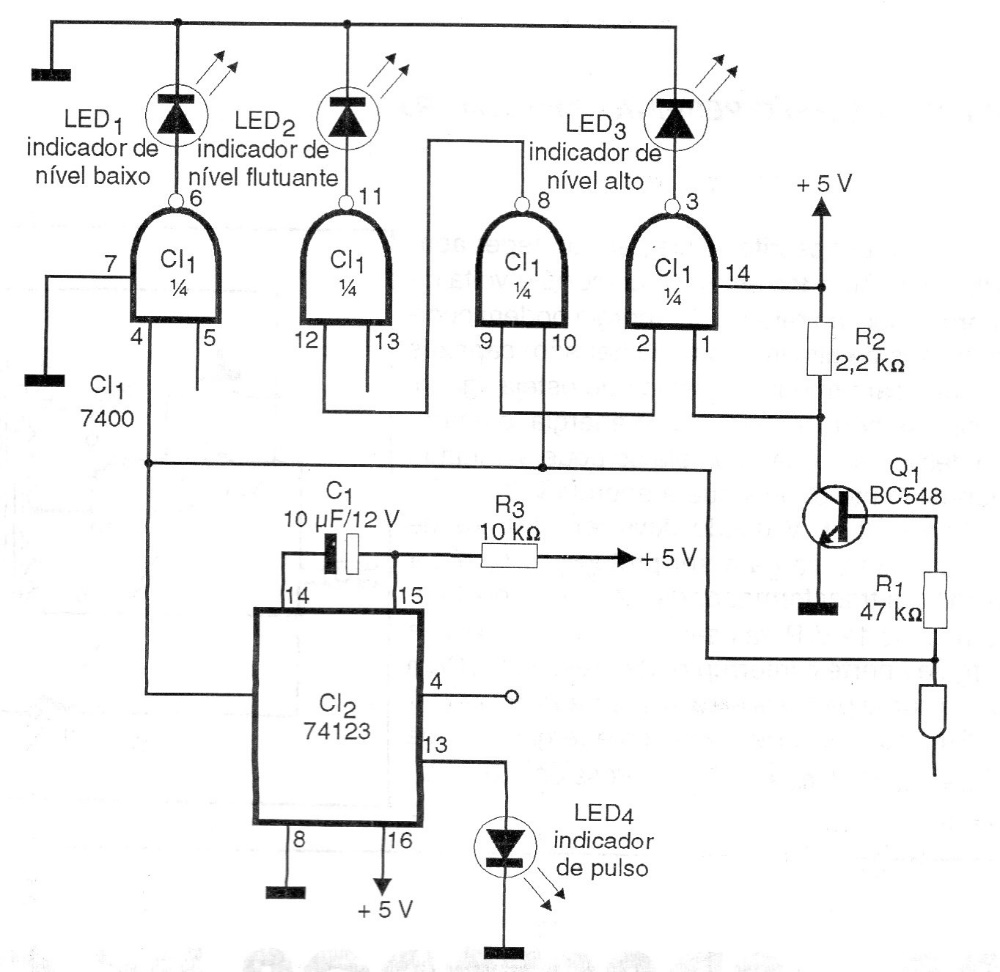

This circuit is indicated for the analysis of TTL circuits being powered by 5 V taken from the circuit being analyzed. The circuit has three indicator LEDs. We found this configuration in a 1997 documentation.
| Clique na imagem para ampliar |
Logic Level Detector (CB16846E)
- Details
- Written by: Newton C. Braga
