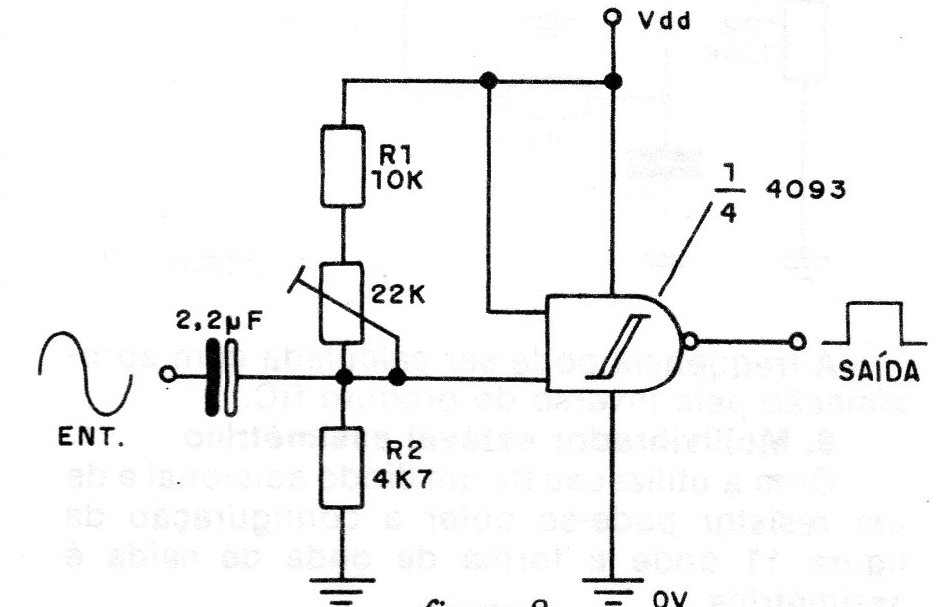

With the help of a trimpot, the Schmitt trigger input voltage can be brought to the threshold of the transition, which allows it to operate with small amplitude input signals or work on the output signal, changing its symmetry depending on the trigger point. The adjustment will be made so that in the absence of an input signal the output level is Hl.
