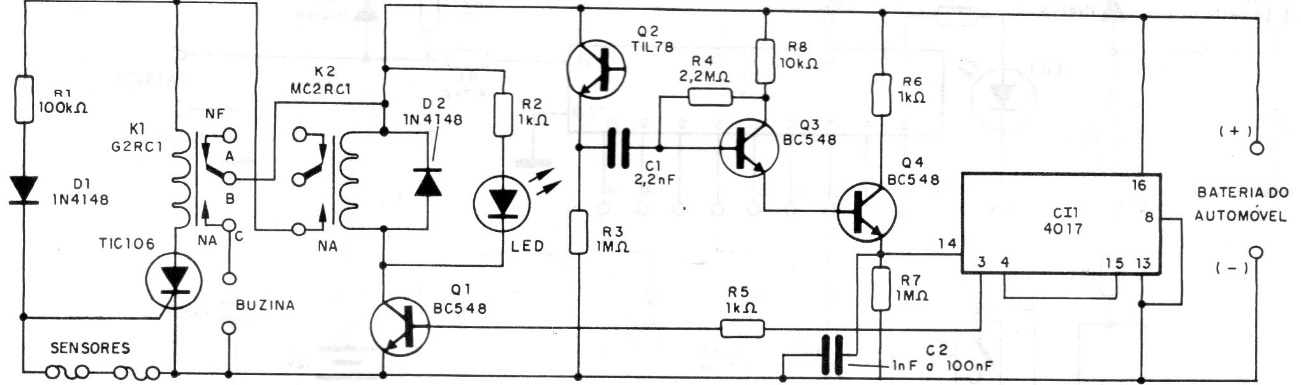

The trip circuit for this alarm is given in CB16765E. The circuit uses common components and acts on relays that inhibit ignition or even sound a siren. The circuit is powered by the car's own battery, which must be protected.
