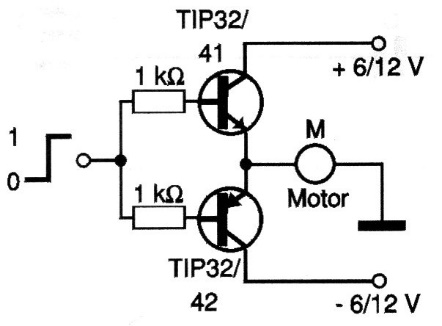

This is a direction of rotation control for a small motor up to about 2 A with the indicated transistors. The circuit can be used as a shield for microcontrollers or in other applications.
DC Motor Control (CB17555E)
- Details
- Written by: Newton C. Braga
