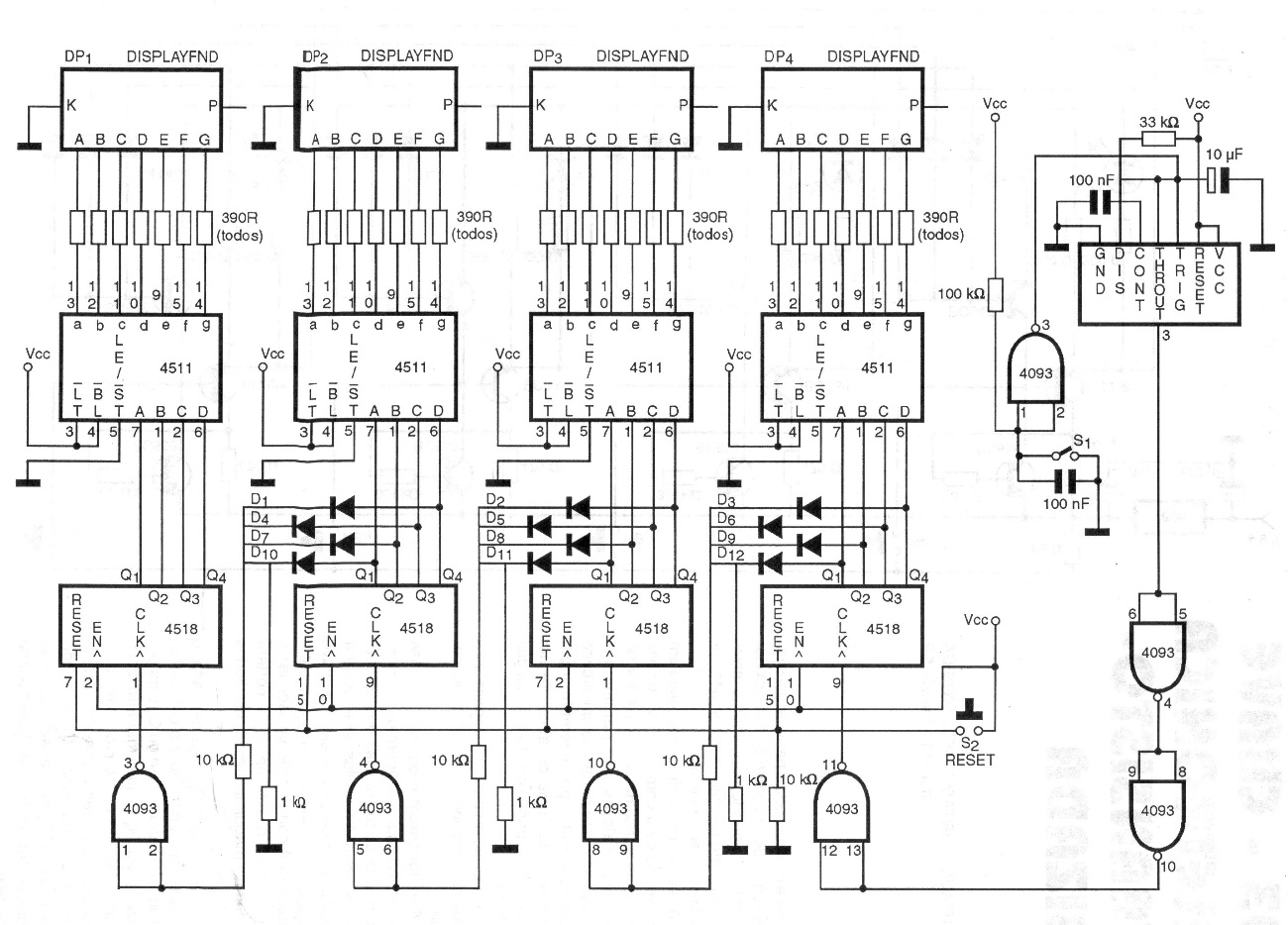

This circuit can be used for several purposes such as pulse counter, pass counter, roulette, etc. The circuit has 4 digits with common cathode displays and must be supplied with voltages from 6 to 12 V. The circuit is from 1998 documentation.
| Clique na imagem para ampliar |
