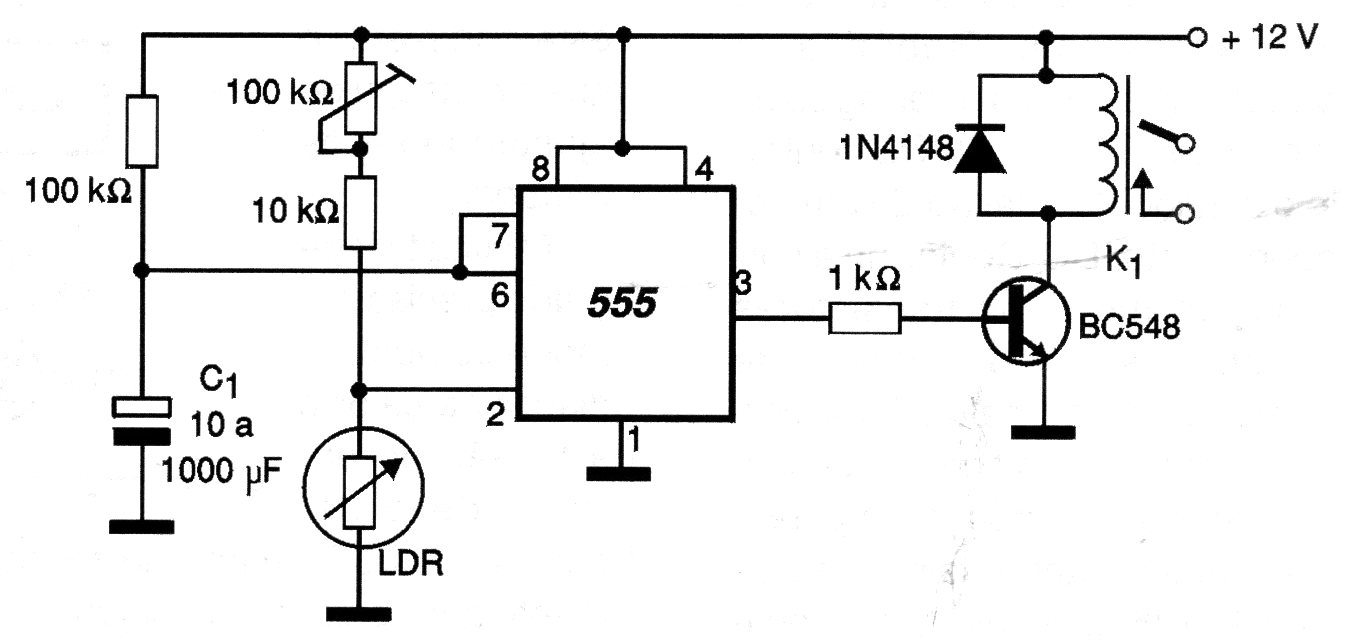

This configuration appears in other points of the site both in articles and project suggestions. The circuit activates a relay for a time determined by the 100k resistor and the capacitor C1. Adjustment of the trigger point is made in the trimpot. The circuit also works at 6 V when the relay is changed.
