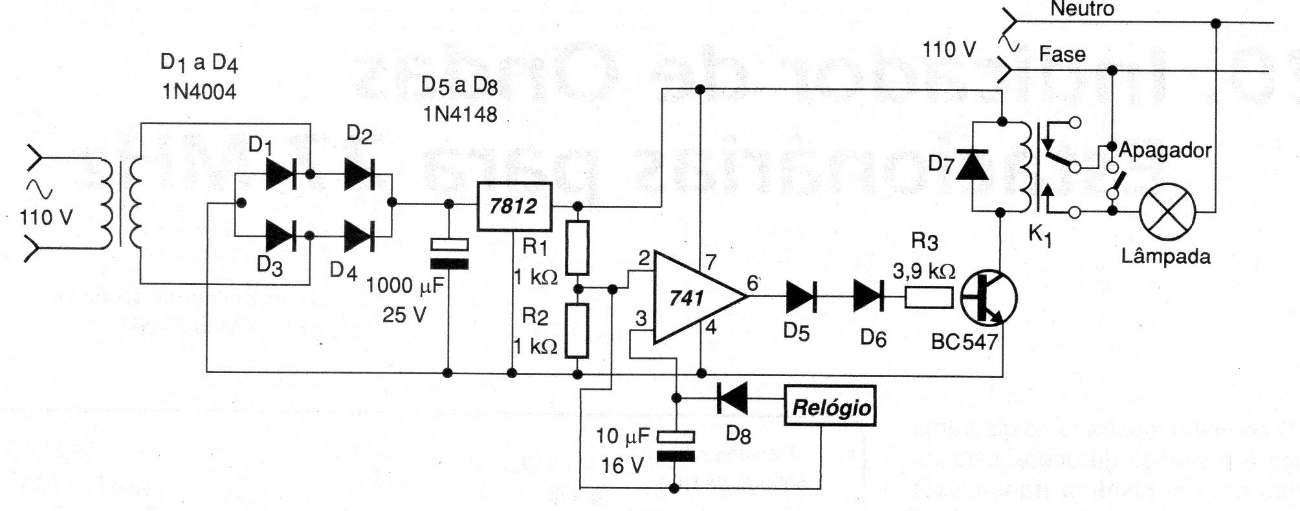

This circuit causes the room light to go on when the alarm goes off. The circuit is from 2003 documentation. It uses a trigger signal that must be obtained from the alarm clock itself. The circuit has a source with a 12 V x 200 to 500 mA transformer and uses a relay for this same voltage.
