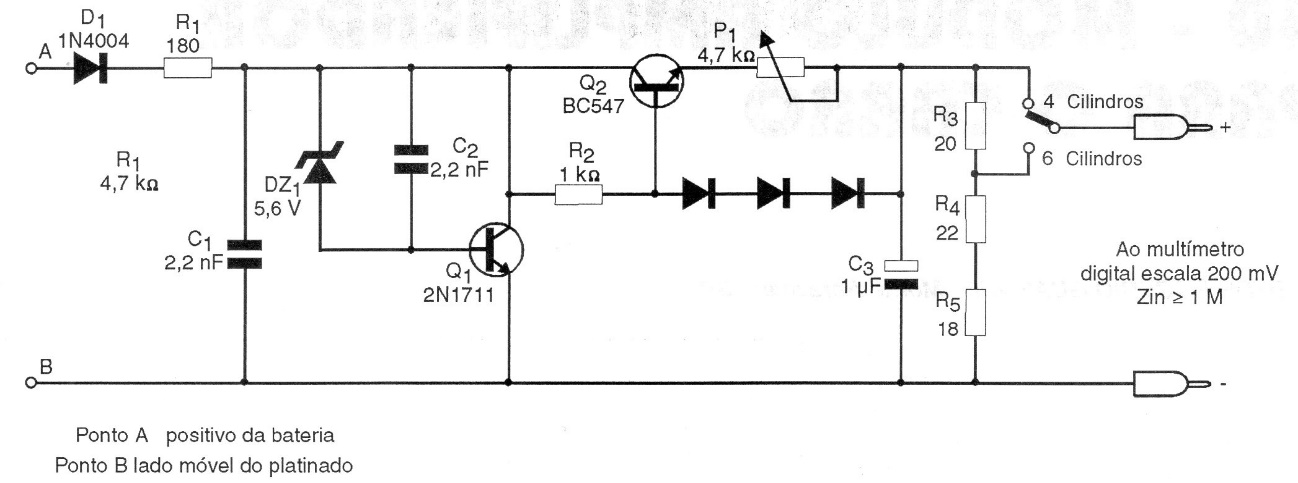

This circuit, from a 1997 documentation, is used to adjust the angle of permanence of vehicles of the time that still used contact breakers. The circuit uses the multimeter as an indicator instrument and is powered by the car's own voltage. In the figure we have the connection points of this instrument.
