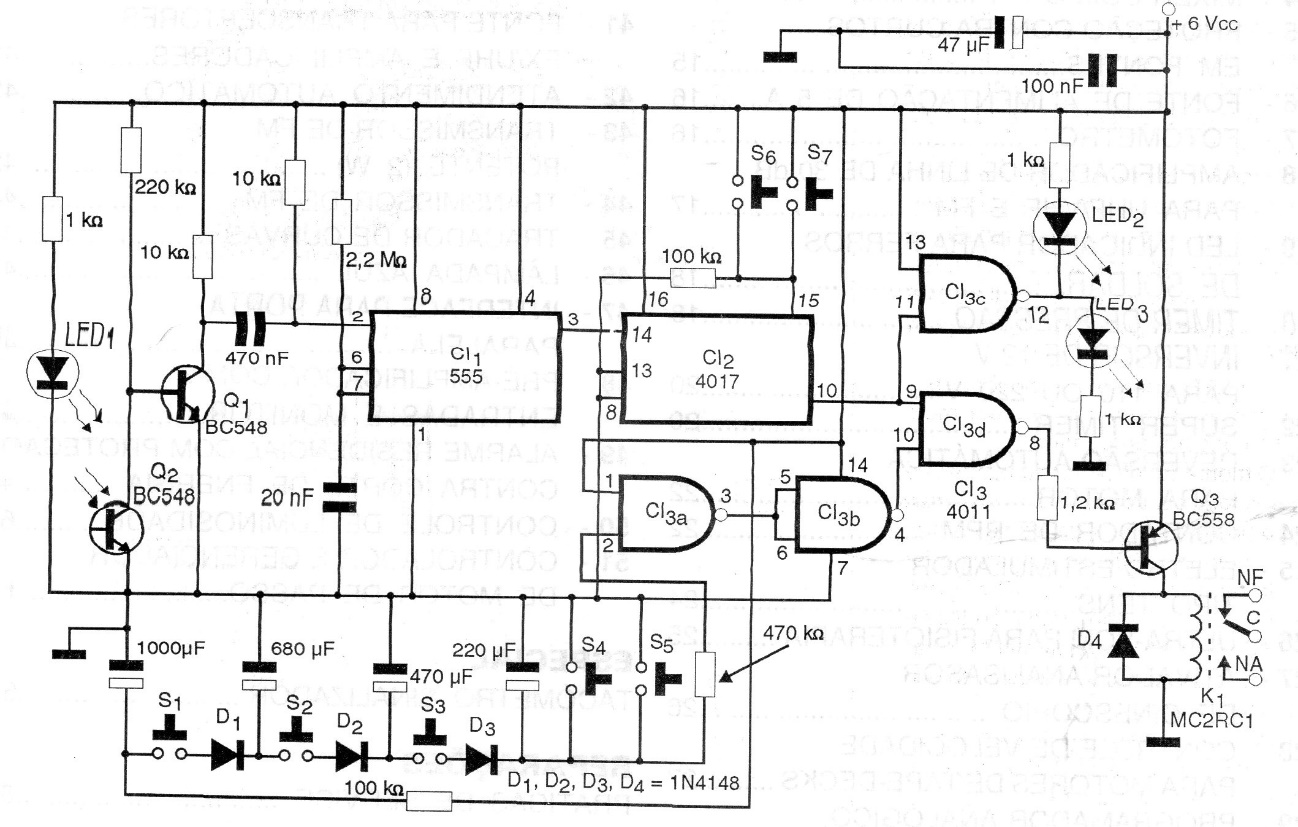

We found this circuit in a 1997 documentation, but it can still be easily assembled, as it uses common CMOS components. The circuit is powered by 6 V which is the voltage of the relay used. The circuit is activated by a perforated card when you must then enter the password that enables the relay.
| Clique na imagem para ampliar |
