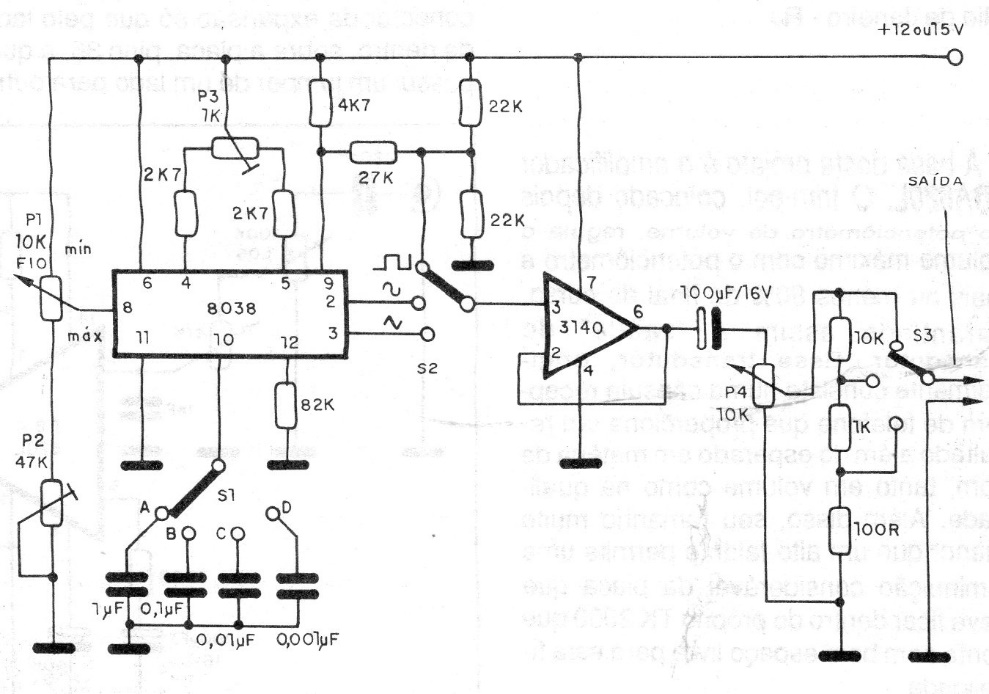

This 1990 circuit is based on an uncommon integrated system that gathers all the resources for the elaboration of a function generator. This 4-band circuit covers the frequencies from 100 Hz to 100 kHz and has an operational amplifier at the output with intensity control.
