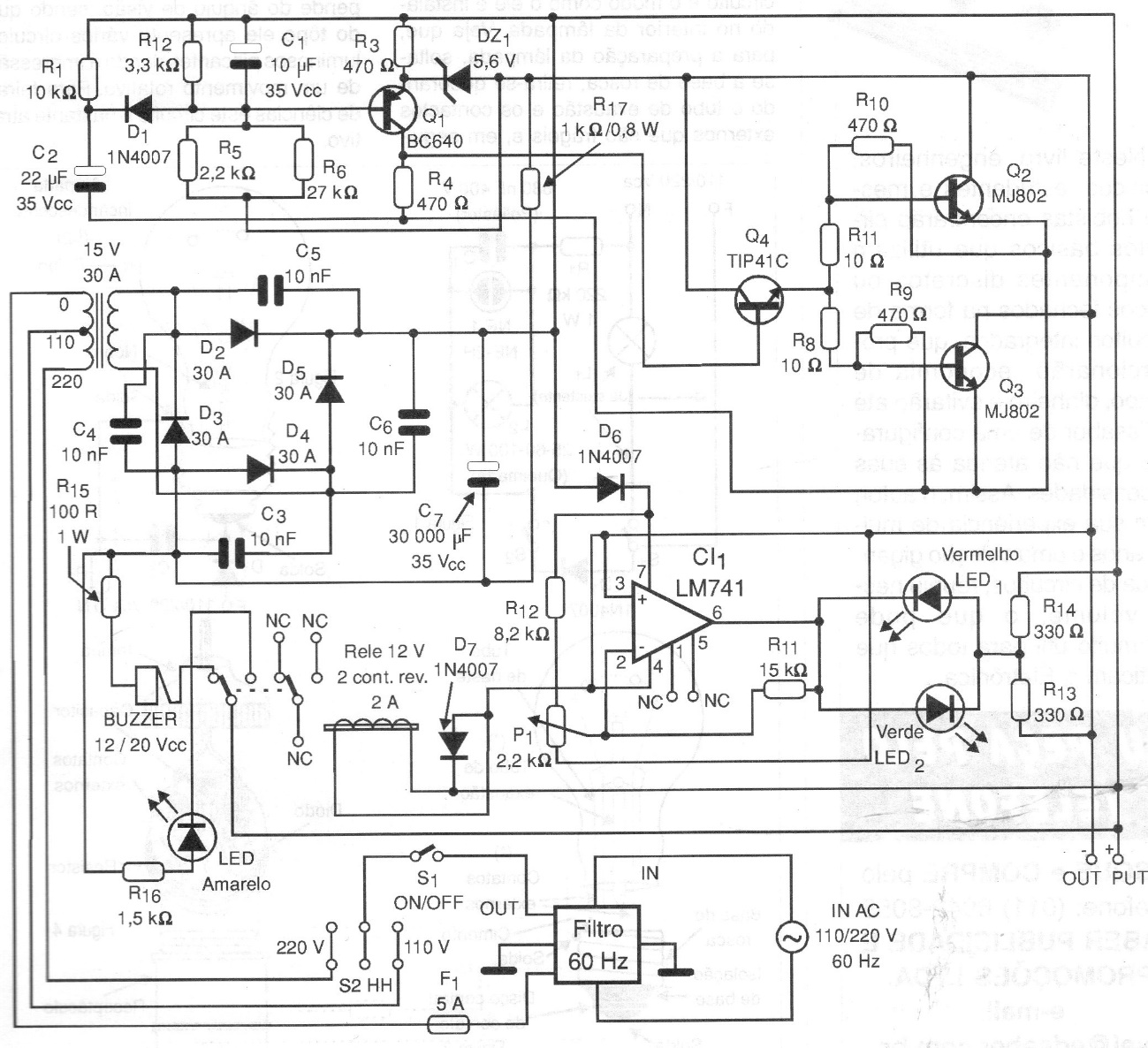

The power transistors from this 1999 source must be mounted on excellent heat sinks. The circuit is suitable for supplying automotive devices up to 30 A. The 13.8 V output is set to P1.
| Clique na imagem para ampliar |
13 V x 30 A Power Supply (CB17470E)
