H-Bridge (CB17539E)

Details
Written by: Newton C. Braga

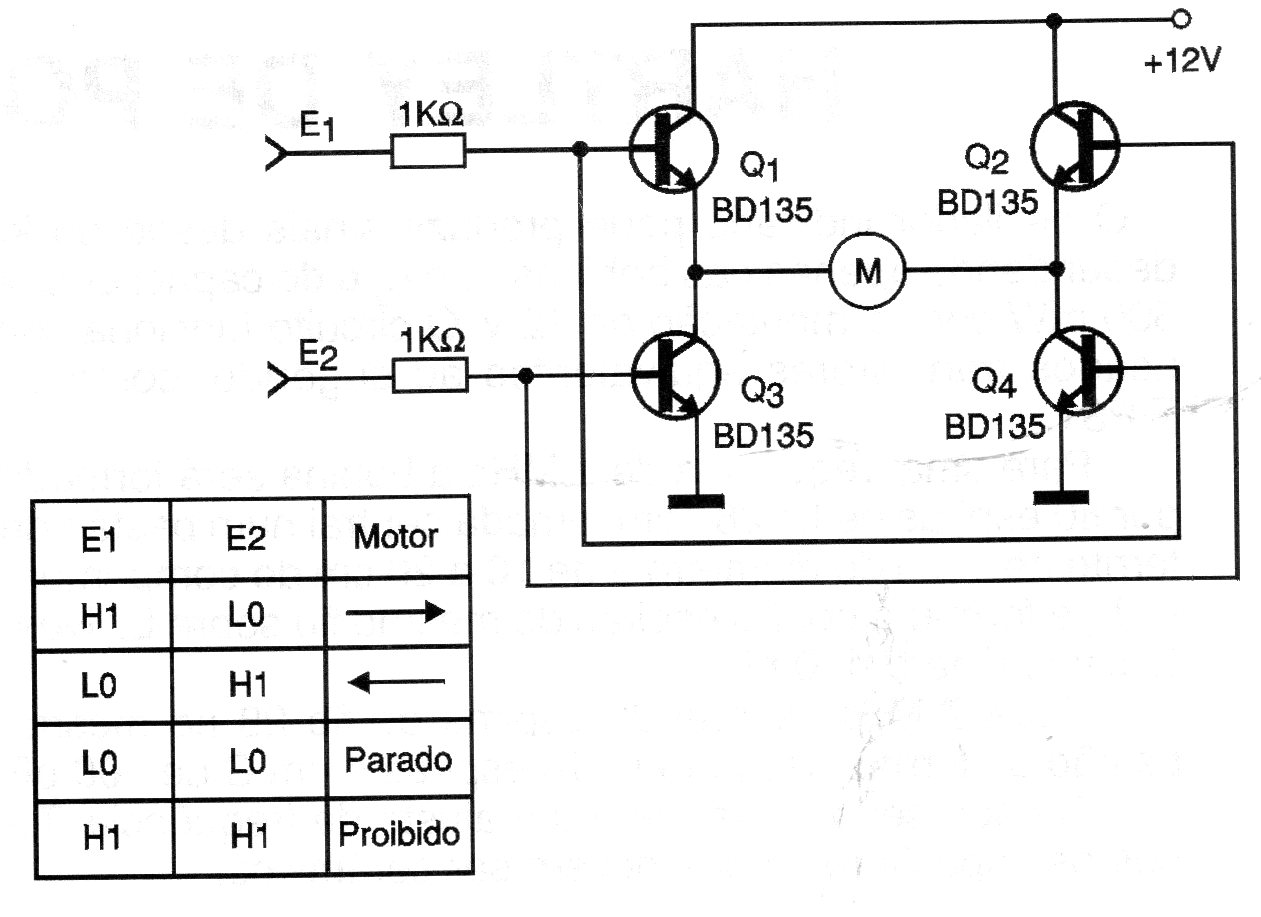

This is the traditional H bridge configuration for motors. The circuit is for currents up to 500 mA, but with higher power transistors such as the TIP31 motors up to 2 A can be controlled.
