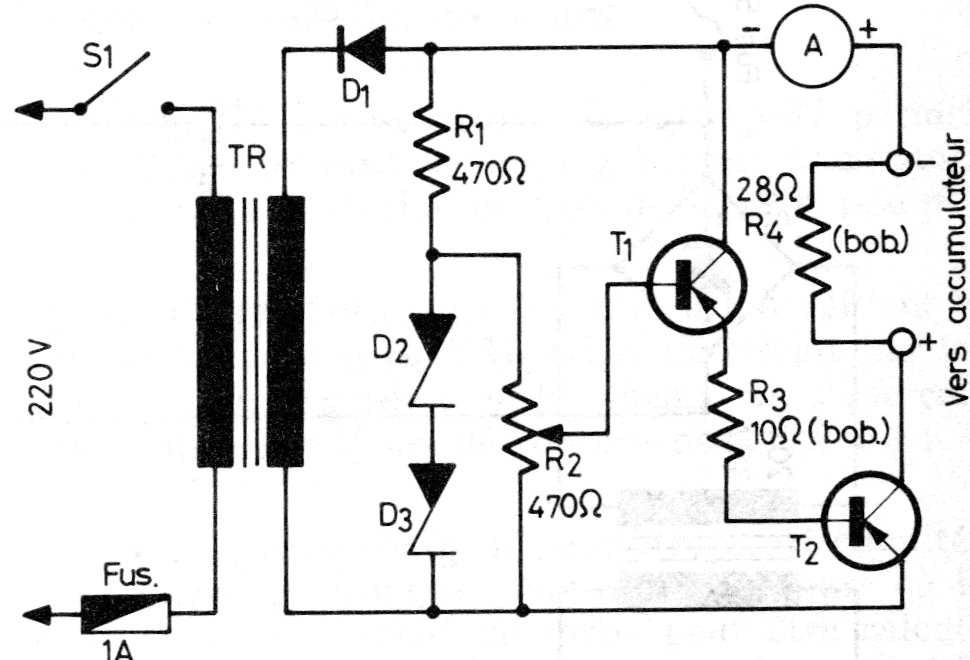

This circuit, obtained from old documentation, allows the recovery of sulfated batteries. The transformer has a 15 V x 3 A secondary and the transistor T2 can be a TIP42 equipped with a heat sink. Transistor T1 can be a BD136. The diode must be for 3 A at least and the zener diodes must be 12 V.
