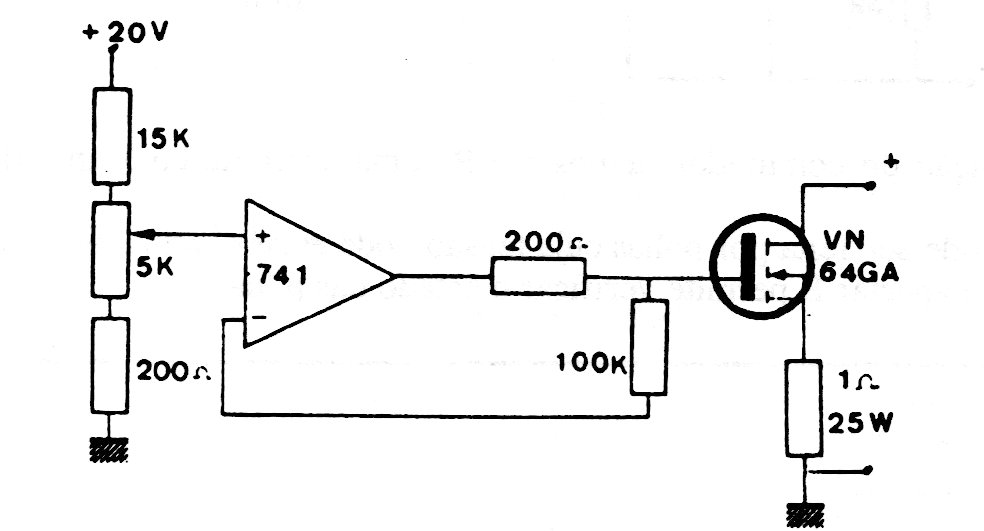

This high current circuit using a MOSFET and an operational one was found in a documentation from the 1980s. The potentiometer adjusts the current for a load of up to 25 W. The MOSFET admits equivalents and must be equipped with a heat sink.
