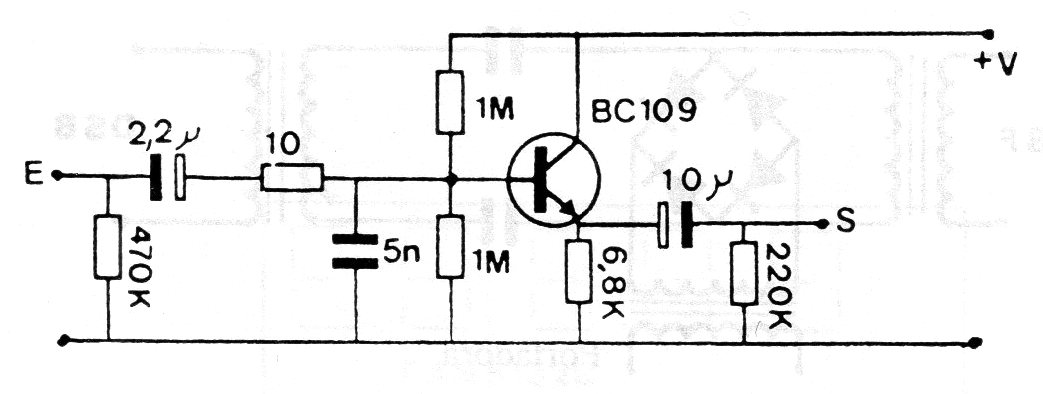

This circuit was found in a publication from the 1980s, used to recover FM signals received in an uncorrected receiver. The circuit is powered by voltages around 9 V and the transistor can be the BC549.
| Clique na imagem para ampliar |
Deemphasis Filter (CB19041E)
- Details
- Written by: Newton C. Braga
