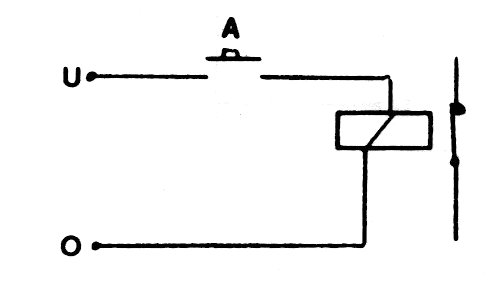

In the figure we have the way to implement an inverter using a relay. The contacts used are NF and C. The truth table will be:
I O
0 1
1 0
NOR function with Relay (CB19766E)
- Details
- Written by: Newton C. Braga
In the figure we have the way to implement an inverter using a relay. The contacts used are NF and C. The truth table will be:
I O
0 1
1 0
