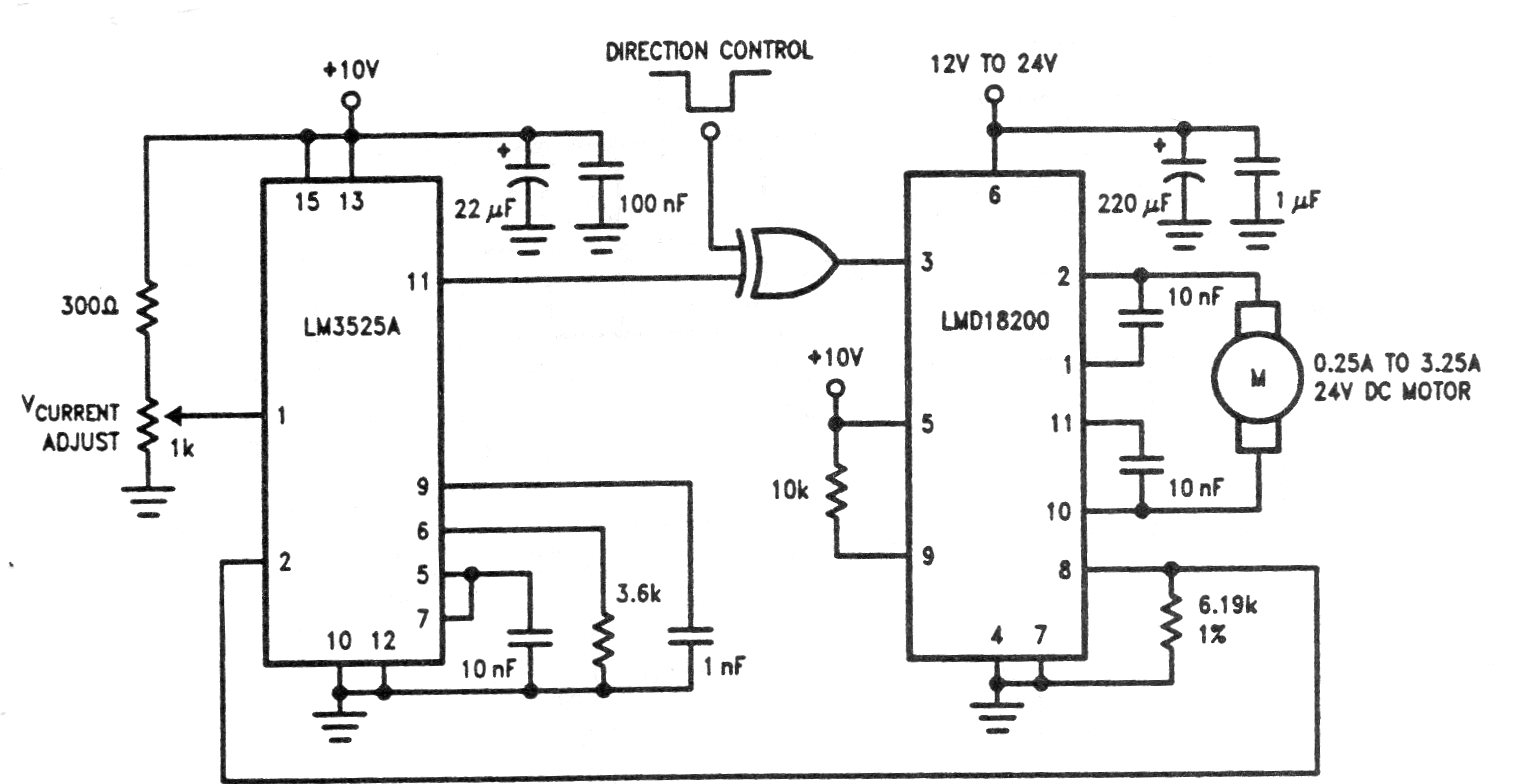

This circuit was found in an old National Semiconductor publication that is now a Texas Instruments group company. The integrated circuit used, uncommon today, consists of a 3 A x 55 V H bridge. The control for DC motors is done through a potentiometer.
