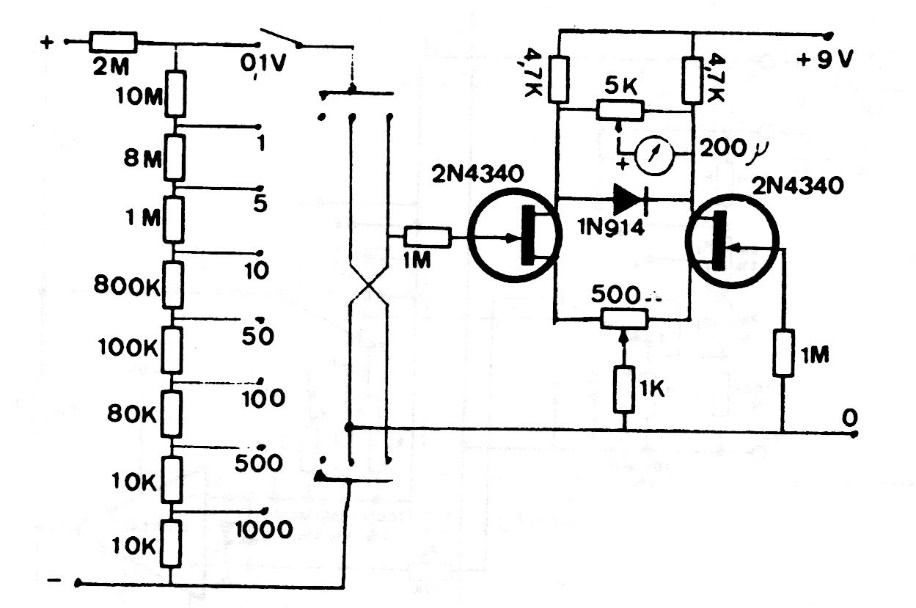

This interesting configuration of voltmeter with FET, with very high input impedance was found in an old documentation, but it is still current. Current BF245 FETs can be used, and the accuracy will depend on the input network resistors.
