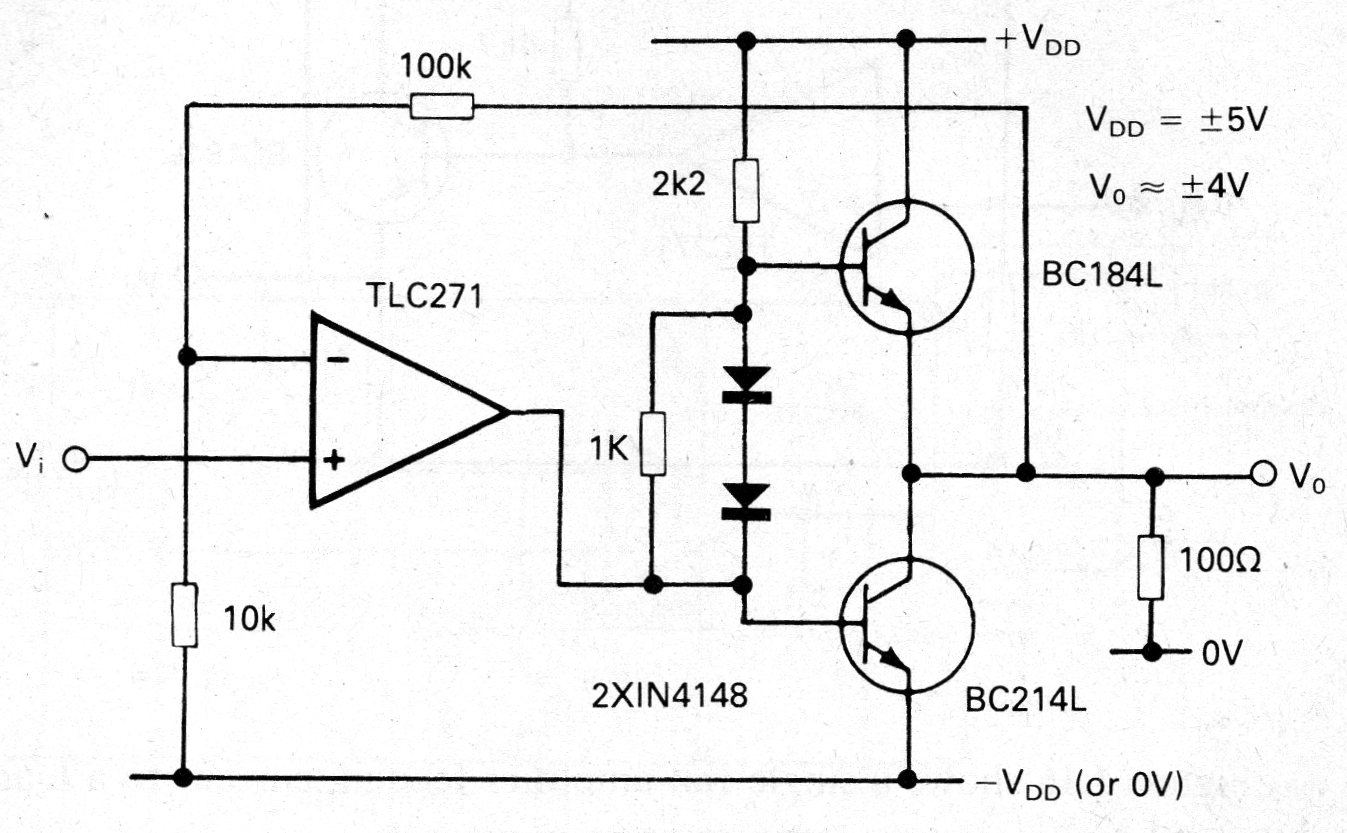

This power stage can be used with operational equivalents as indicated. The circuit is from a Texas Instruments manual and the output transistors also support equivalents such as the BC548 / BC558 pair. The power is in the order of milliwatts and the power can be 5 V for operation as an audio shield.
