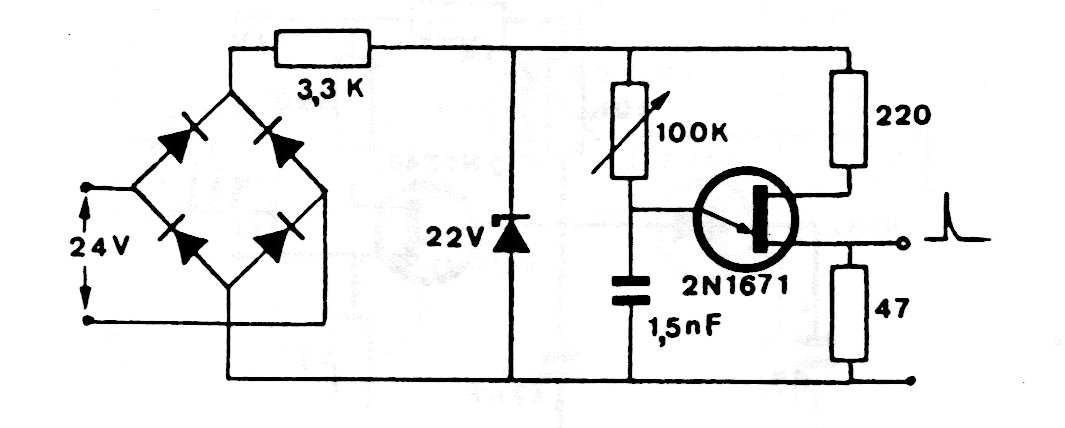

We found this circuit in a 90's European schematic. The circuit can be implemented with almost any unijunction and the bridge diodes are for general use. Synchronization is provided by the capacitor and the potentiometer setting. For the values of the given components the circuit synchronizes at 100 Hz.
| Clique na imagem para ampliar |
