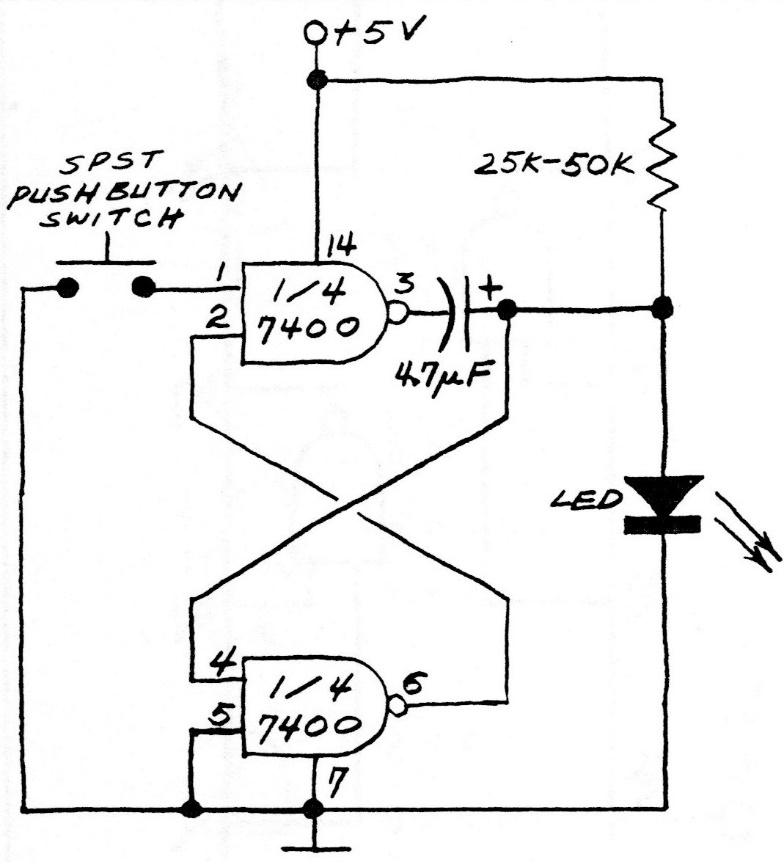

In the figure we have the way to obtain a monostable action by lighting an LED for a certain time from an input command. The circuit must be supplied with 5 V and the ignition time depends on the capacitor value.
| Clique na imagem para ampliar |
Monostable TTL 7400 (CB19313E)
- Details
- Written by: Newton C. Braga
