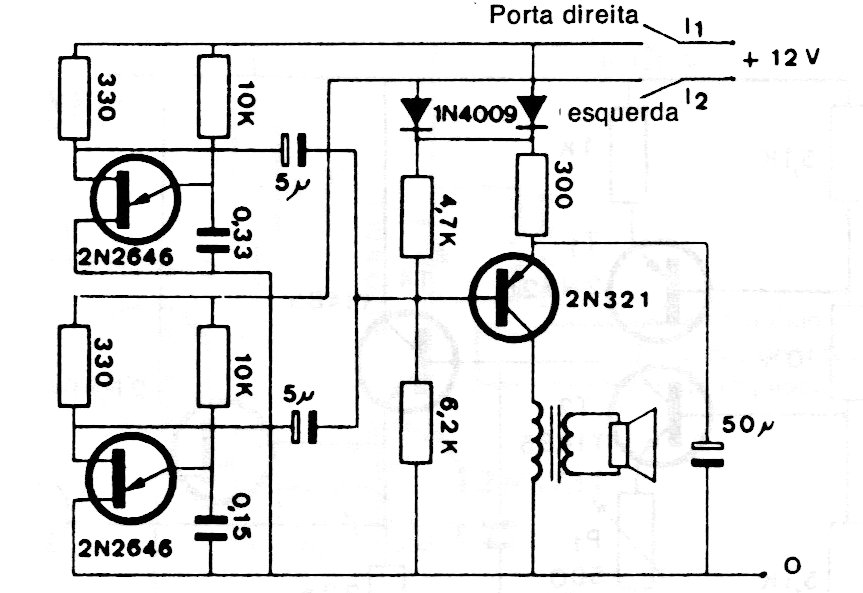

This circuit was obtained in a European documentation of the 80's. The circuit uses common unijunction transistors already having an oscillator circuit. The transformer is an output type for transistors, but a power stage can be used to increase the volume of sound.
| Clique na imagem para ampliar |
