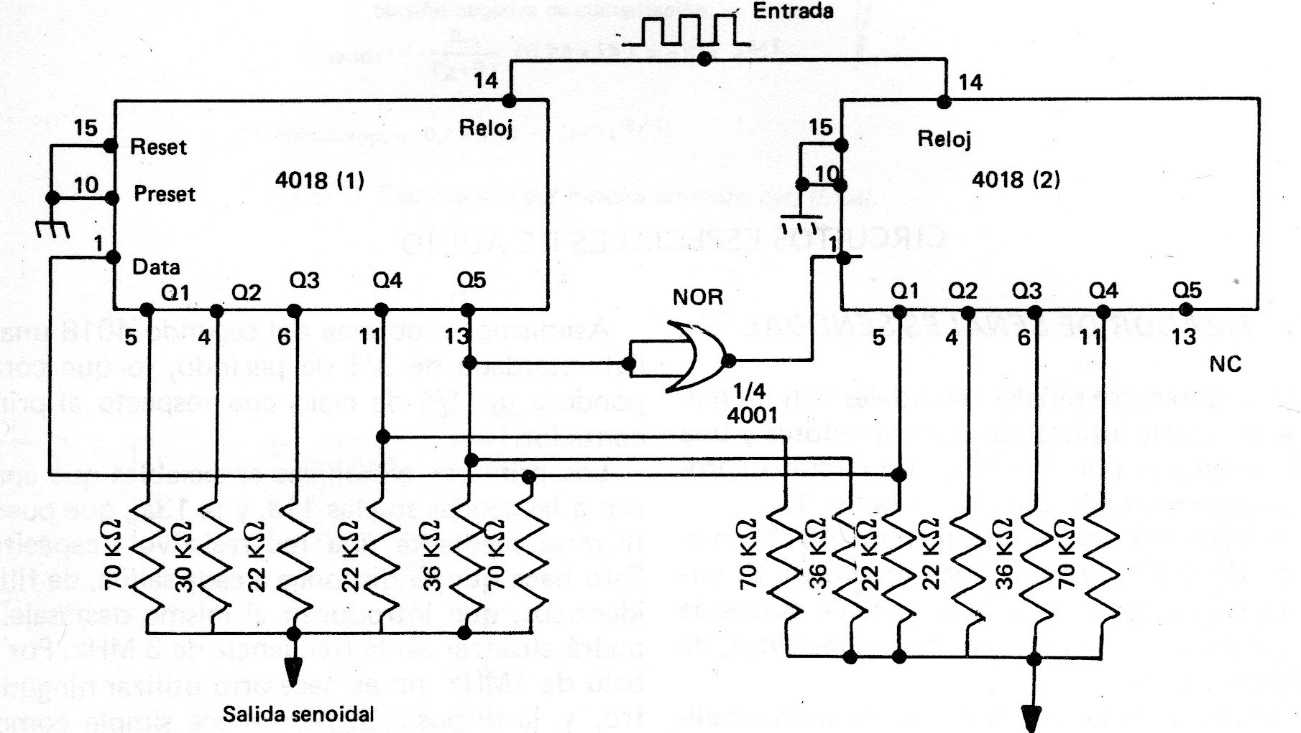

Although we found this circuit in an old documentation, it is still up to date due to the components it uses. In fact, we found variations of this circuit in other articles on this site. The circuit can operate with voltages from 5 to 12 V. The pin 8 and 16 of the 4018. Power supply was not indicated.
| Clique na imagem para ampliar |
