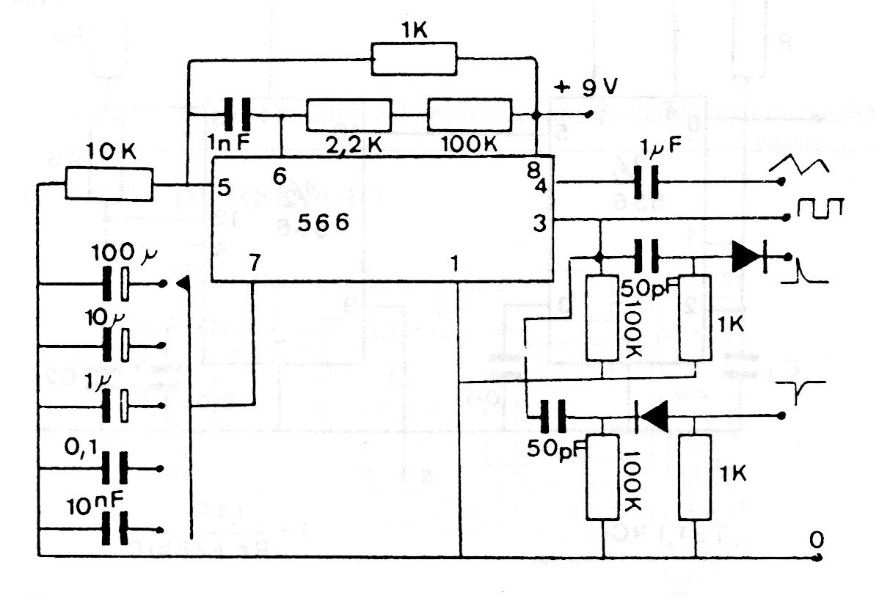

This circuit found in a European publication from the 1980s, is based on PLL 566. The frequencies generated are determined by the selected capacitors and the shapes of the signals are determined by the corresponding output circuits.
