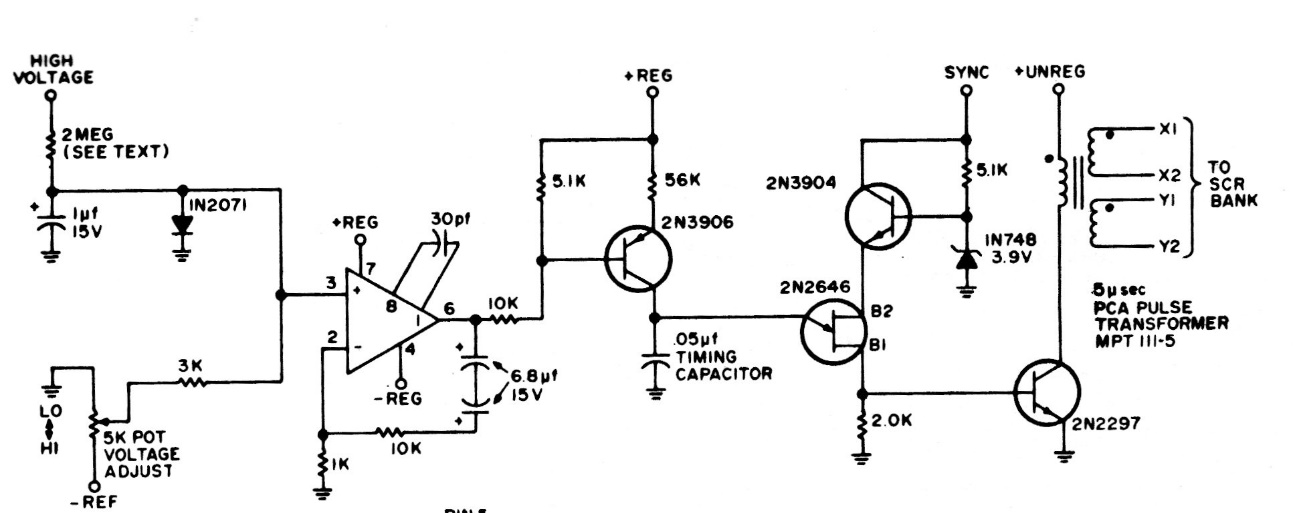

Error Amplifier and Trigger Generator (CB19981E)

Details
Written by: Newton C. Braga



This circuit was found in old documentation. The components can be replaced by modern ones. The circuit is used in power controls.
