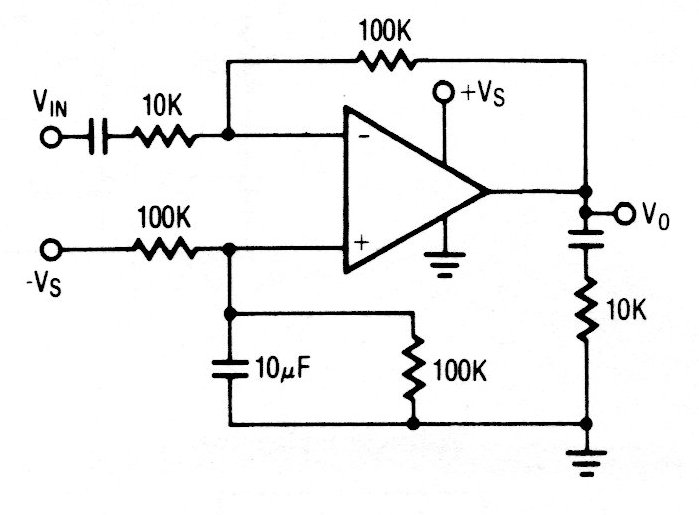

Raytheon's RC4858 amplifier is like the 741. This circuit was obtained in an old circuit manual. The power supply does not need to be symmetrical, and the supply voltage can be between 3 and 15 V depending on the operational.
| Clique na imagem para ampliar |
