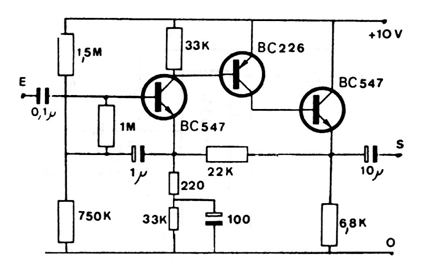

We found this preamplifier circuit with high input resistance, on the order of 30 M ohms, in an old documentation. Transistors can be exchanged for modern equivalents. The voltage gain is 100 and the output resistance is 150 ohms.
High Input Resistance Amplifier (CB19902E)
- Details
- Written by: Newton C. Braga
