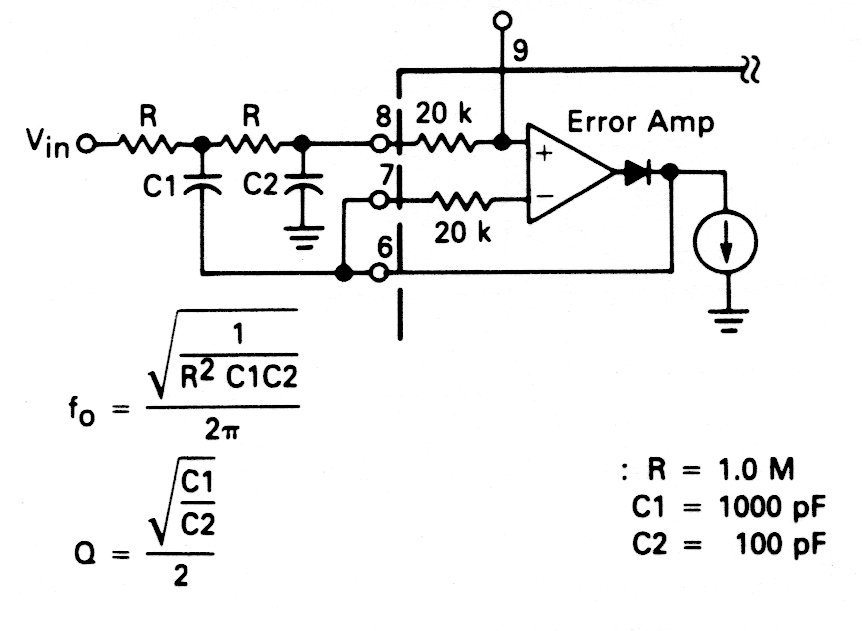

This second-order filter was found in a documentation from the 90's. It can be implemented with common operational, and the frequency is calculated according to the components by the formulas next to the diagram.
| Clique na imagem para ampliar |
Active Low Pass Filter (CB19802E)
- Details
- Written by: Newton C. Braga
