3 Transistors MW Receiver (CB20277E)

Details
Written by: Newton C. Braga

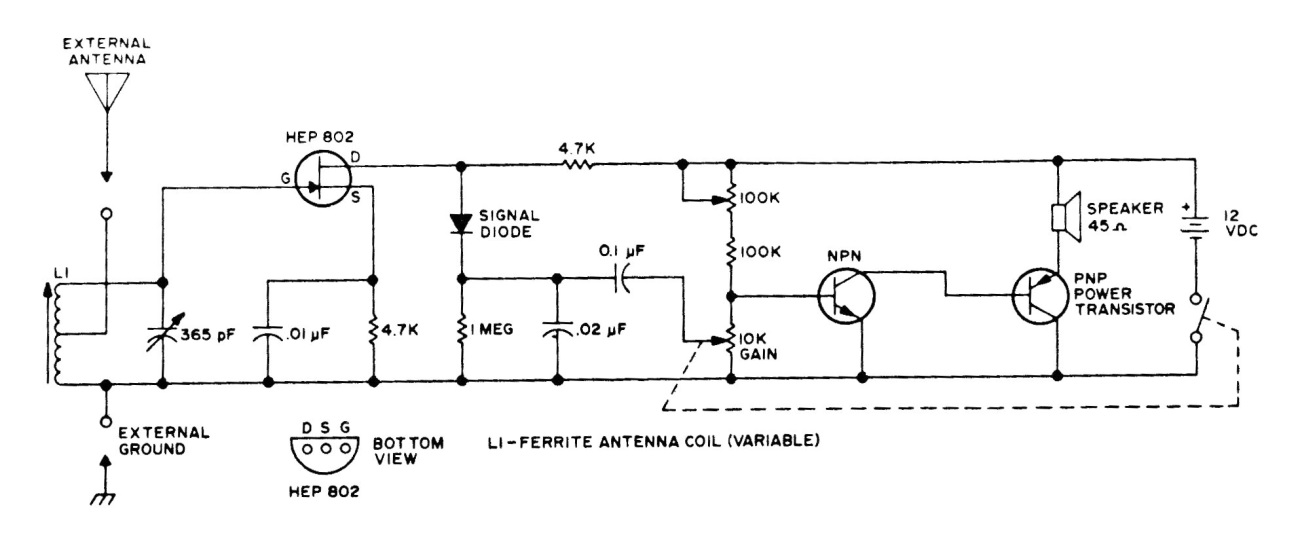

The FET can be a BF245, and the other transistors can be the BC548 and BC558 in this simple AM receiver. Adjust R4 for the best sound. The coil has 20 + 60 turns of wire 28 in a ferrite rod.
