Photo timer 556 (CB20799E)

Details
Written by: Newton C. Braga

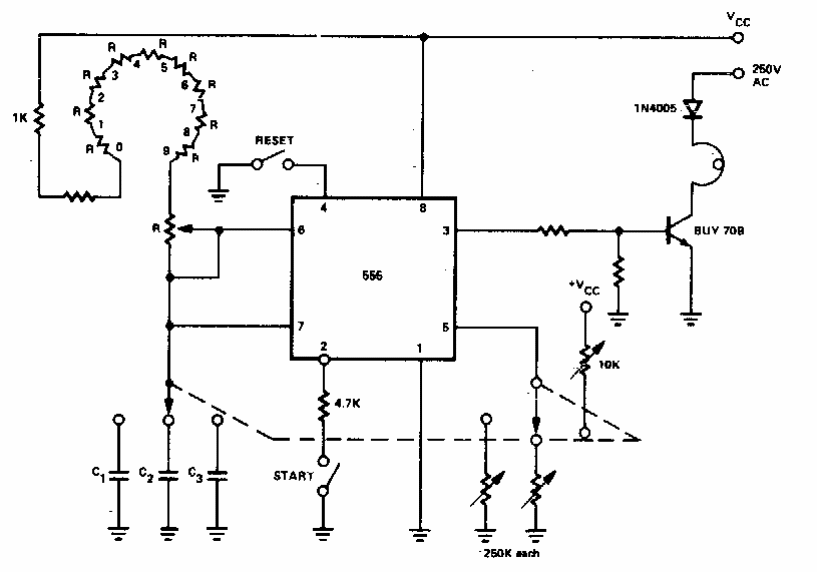

This circuit was found in old documentation, however the components used are common today. The selection of times is done by switch and the 556 consists of a double 555.




| Clique na imagem para ampliar |
