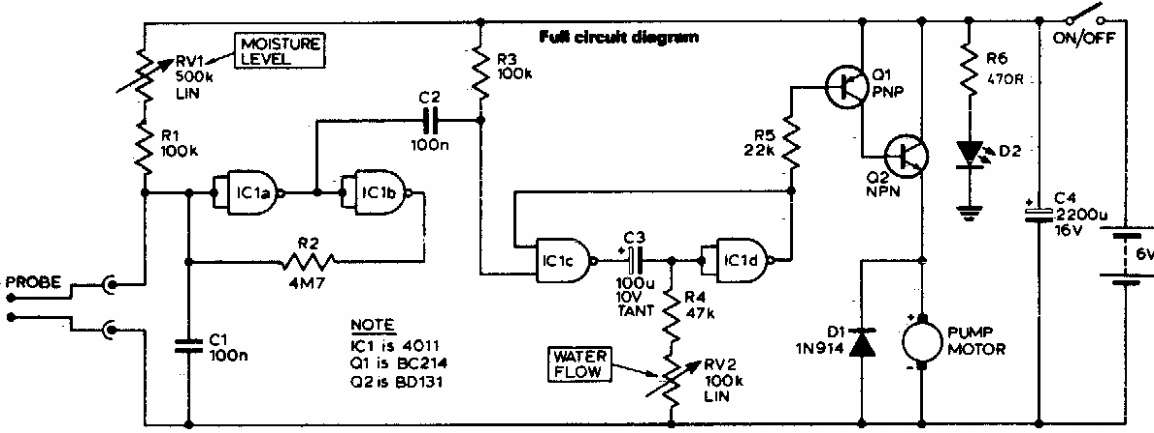

This circuit triggers a small water pump when the humidity detected by the sensor is reduced in a flower bed or potted plant. The circuit must use a source according to the driven water pump.
| Clique na imagem para ampliar |
Automatic plant sprinkler (CB20778E)
- Details
- Written by: Newton C. Braga
