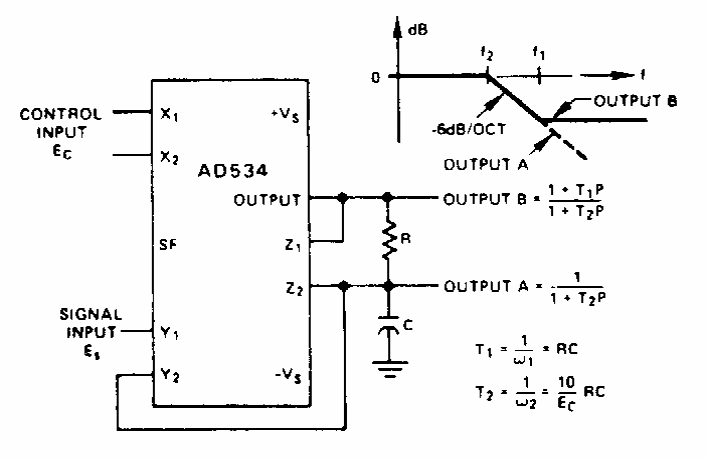

This circuit was found in 80's documentation from Analog Devices. The formulas for calculating the components as a function of frequency are given next to the diagram.
| Clique na imagem para ampliar |
Voltage-controlled low-pass filter (CB20940E)
- Details
- Written by: Newton C. Braga
