Infrared tone transmitter (CB20977E)

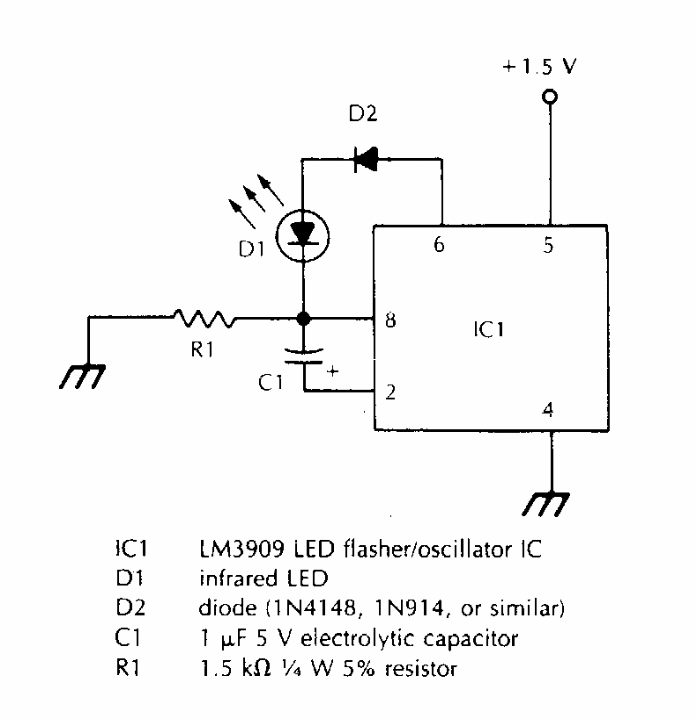

This simple very low power circuit can be used in a battery powered infrared tone trigger. We found it in an American documentation from the 90s.

| Clique na imagem para ampliar |

Short circuit protection circuit (CB21197E)
This circuit was taken from a Popular Electronics from the 1990s. The circuit triggers a relay that...
Battery and Battery Eliminator (CB1406E )
The transformer inf this circuit is a 6 or 9 V unit and diodes 1N4002. The filter capacitor is 2...
Fluorescent Inverter with Automotive Relay (CB13721E)
This circuit causes a relay to oscillate generating a signal that turns into high voltage in a...
