Transistor tester (CB20677E)

Details
Written by: Newton C. Braga

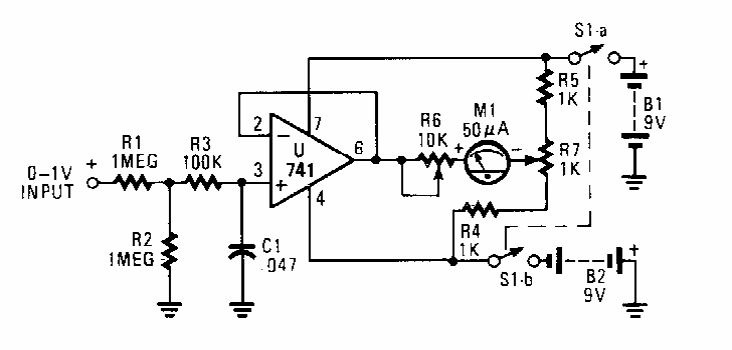

This simple tester was found in a Popular Electronics from the 90s. The circuit is powered by two 9 V batteries since it requires a symmetrical source.




| Clique na imagem para ampliar |
