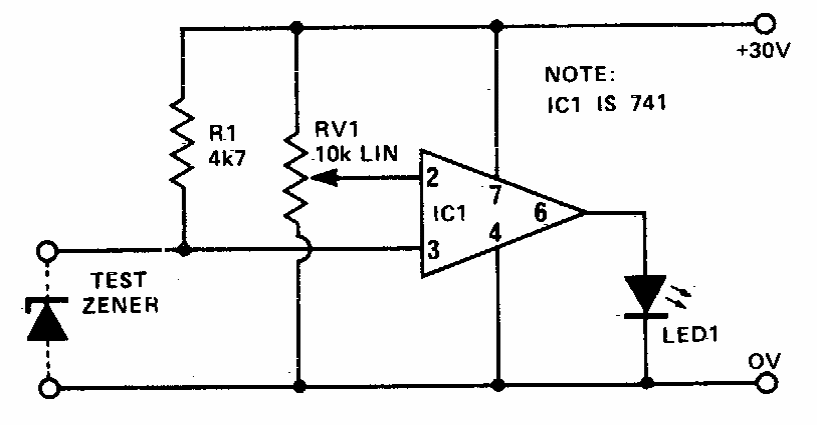

This simple circuit is intended to test the zener test. RV1 can be calibrated in terms of voltage. The maximum voltage of the tested zener is that used in the circuit supply.
| Clique na imagem para ampliar |
Zener test (CB20732E)
