Bistable light relay (CB21708E)

Details
Written by: Newton C. Braga

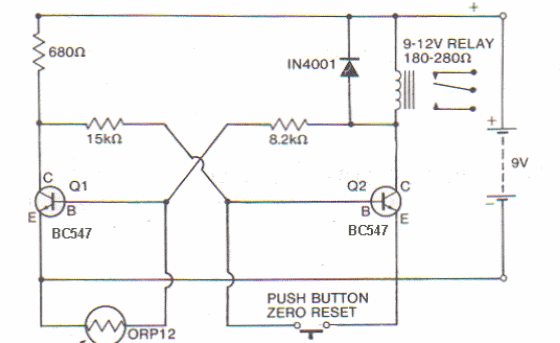

This circuit was found in an internet documentation. The relay must have voltage according to the supply.
