Practice code oscillator (CB21090E)

Details
Written by: Newton C. Braga

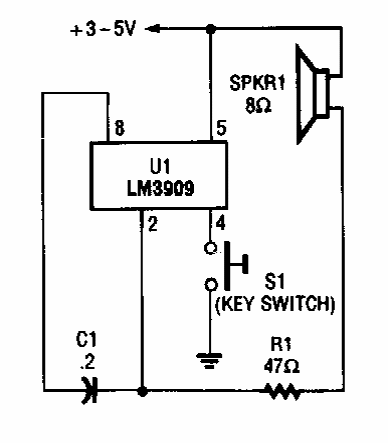

Found in Popular Electronics from the 90's, this circuit consists of an audio oscillator for Morse code practice.
