Protection for 3-terminal regulator (CB21163E)

Details
Written by: Newton C. Braga

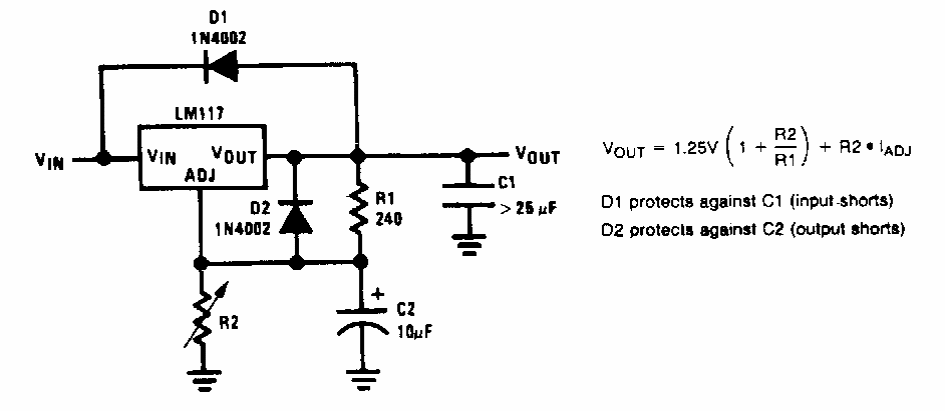

This circuit was found in documentation from National Semiconductor. The formula next to the diagram allows you to calculate the components used.




| Clique na imagem para ampliar |
