Detector and counter (CB21510E)

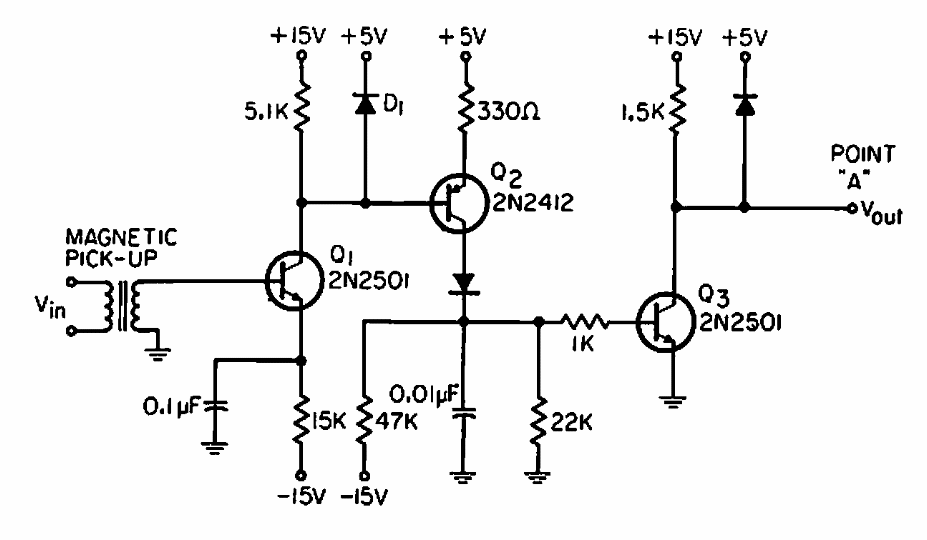

This circuit was taken from old American documentation. The circuit provides pulses obtained from a magnetic sensor for application in meters.

| Clique na imagem para ampliar |
