5W Amplifier with the TDA1037 (CB21889E)

Details
Written by: Newton C. Braga

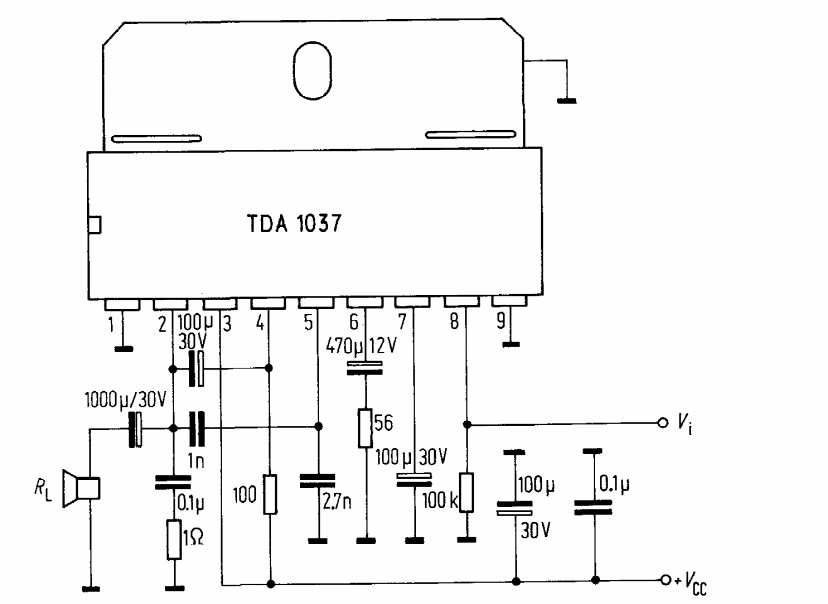

Obtained from the 1976 Siemens integrated circuits manual, this audio amplifier has thermal shutdown. The power supply is 12 V, as the indicated use is in the car.
