Push-pull stage (CB21796E)

Details
Written by: Newton C. Braga

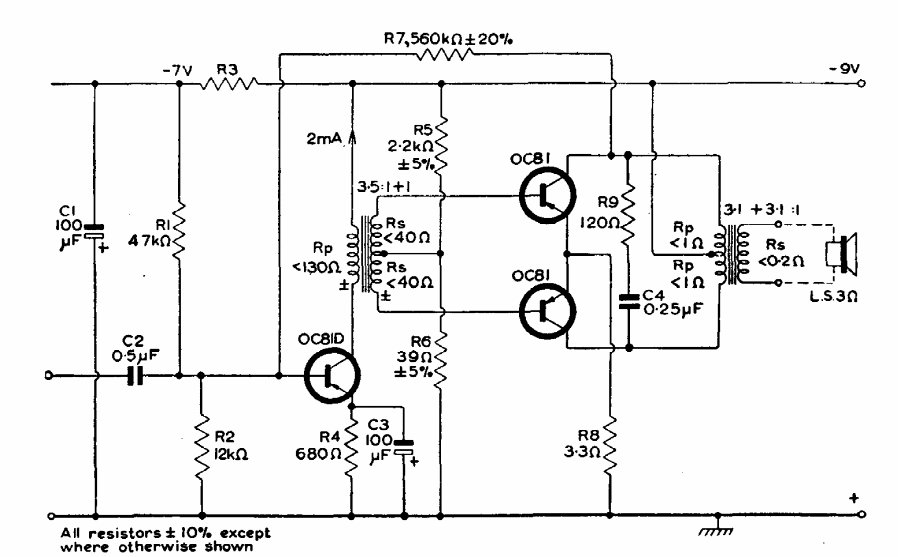

This circuit with 1W of output was found in a Mullard manual from 1960. The consumption is low and germanium transistors of the time are used.
