TTL Oscillator (CB21119E)

Details
Written by: Newton C. Braga

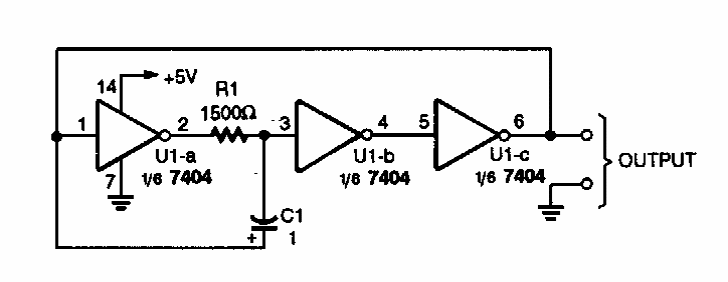

This 1 kHz TTL oscillator uses 3 inverters of a 7404 integrated circuit. The circuit is from a Popular Electronics from the 90s.




| Clique na imagem para ampliar |
